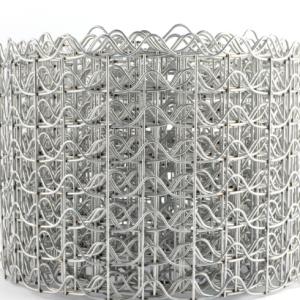

Galvanized Wire Pipeline Reinforced Mesh HFRM-W Ten Line
Galvanized wire pipeline reinforced mesh Description:
Galvanized wire pipeline reinforced mesh is choose high quality hot dipped galvanized wire as material wire. The surface most are choose hot dipped, also special product need cold or electric. Then through our machine professional welded and make in export standard hole size, roll width and length. With strong anti-corrosion and anti-rust properties, so it is durable and has a long service life. It is widely used as reinforcement on concrete weight coating pipelines for oil and gas.
Galvanized wire pipeline reinforced mesh Specification:
| Product Name | Galvanized wire pipeline reinforced mesh |
| Material | hot dipped galvanized wire |
| Wire diameter | 1.6mm-2.85mm |
| Hole size | 25.4mmx67mm or special custom |
| Hardness range | 485N/mm2-650N/mm2 |
| Width per roll | 190.5mm or custom |
| Length per roll | 140mm,280mm or custom |
| Roll Diameter | 700mm-1100mm |
| Surface | Smooth, bright and clean |
| Lifespan | Above 20 years |
Normal Export Specifications Kinds:
| Wire Diameter | Mesh | Width | Length |
| 2.0mm/2.0mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.2mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.4mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| 2.0mm/2.7mm | 25.4mmx67mm | 190.5mm | 140m,280m |
| Products can be customized according to customers’ requirements. | |||
Galvanized wire pipeline reinforced mesh Details:
Galvanized wire pipeline reinforced mesh Package:
1. 1 roll packing in steel belt
2. 5 rolls-6 rolls packing in big bundle
3. Load in bulk
4. Load in pallet
5. Load in wooden box
6. Same as customers' require
Galvanized wire pipeline reinforced mesh Advantage:
1.Good material wire
2.Standard wire diameter
3.Uniform mesh hole size
3. Roll width and roll length both enough for every customer
4. Welded point strong
5. Strong tensile strength
6.High degree of flexibility
Galvanized wire pipeline reinforced mesh Applications:
