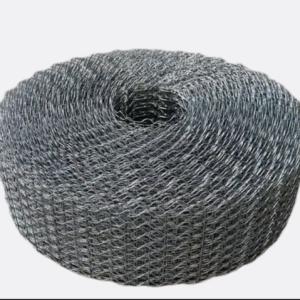

Galvanized Wire Pipeline Reinforced Mesh HFRM-N Six Lines
Galvanized Wire Pipeline Reinforced Mesh Description:
Pipeline Reinforced Welded Wire Mesh is one kind of our Welded mesh product. It is also known as pipeline coating mesh which is widely used as reinforcement on concrete weight coating pipelines for oil and gas. It is designed to provide negative buoyancy and mechanical protection for pipelines in subsea and wet environments. It helps the pipeline sink to the ocean floor and remain in position on the seabed, prevents the pipeline from being damaged during installation and after it is in place.
Galvanized Wire Pipeline Reinforced Mesh Specification:
| Product Name | Galvanized Wire Pipeline Reinforced Mesh |
| Brand Name | Reinforce |
| Material | Galvanzied steel |
| Wire diameter | 2.0mm/2.2mm/2.4mm/2.7mm and so on |
| Mesh Hole size | 25.4mm x 67mm |
| Hardness Range | 485N/mm2~650N/mm2 |
| Width dimensions | 190.5mm |
| Length dimensions | 140m/280m |
| Exposed Wire Edge | ≤ 2.5 mm |
| Roll Diameter | 700mm-1150mm |
| Features | Bright and uniform zinc coating, strong welded |
| Technique | Welded |
| Supply Ability: | 8000 square meters per month |
Galvanized Wire Pipeline Reinforced Mesh Export different kinds can choose:
| Ref Number | Main Wire (mm) | Cross Wires (mm) | Roll Width Dimensions (mm) | Roll Length Dimensions (mm) |
| CWC20 | 2.0@25.4 | 2.0@67 | 190.5 | 140/280 |
| CWC22 | 2.2@25.4 | 2.2@67 | 190.5 | 140/280 |
| CWC24 | 2.4@25.4 | 2.4@67 | 190.5 | 140/280 |
| CWC27 | 2.7@25.4 | 2.7@67 | 190.5 | 140/280 |
Galvanized Wire Pipeline Reinforced Mesh Details:
Galvanized Wire Pipeline Reinforced Mesh Good Features:
1.Anti-corrosion and anti-rust are strong
2.Exceptional continuity and uniformity
3.Use life long
4.Easy use
5.Suitable for store
6.Fast delivery time
Galvanized Wire Pipeline Reinforced Mesh Application:
Galvanized Wire Pipeline reinforced mesh is used to reinforce subsea oil and gas pipelines,providing additional strength and durability to the pipeline. And this kind of mesh can be used to protect the everglades gas pipeline from external factors such as erosion,corrosion,or wildlife damage.
FAQ:
Stainless steel mesh: suitable for corrosive environment, acid and alkali corrosion resistance.
Composite mesh: light weight, high corrosion resistance, suitable for special environment. Each material has its specific usage scenarios and advantages, and users can choose according to actual needs.
How to install the reinforcement network? Is the installation complicated?
Answer: The installation of reinforced mesh is relatively simple. Usually, the mesh is covered on the surface of the pipe and fixed to the pipe by special fixing equipment. The construction team does not need special tools to complete the installation, adapting to various pipe diameters and shapes.
